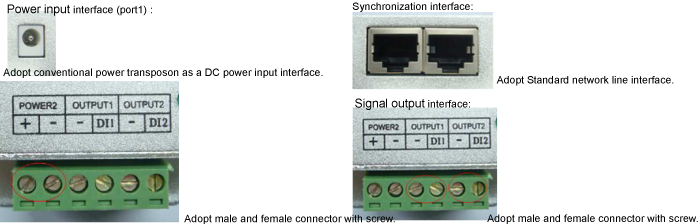

Connect the load well wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power. Then set the steps as follows.
Press the "On / off" button to take the controller off before setting the menu.
Press the 鈥渦p鈥, 鈥渄own鈥 button one time at the time, and LED would be bright at this moment. Then press the "Mode / Speed" button to get into the menu settings screen.
The first setting screen is for 鈥淗igh-speed, low-speed settings鈥, and the LED would display "S-HI" or "S-LO". Then press the 鈥渦p鈥 and 鈥渄own鈥 button to select the mode. (If the IC on the light bar is high-speed mode, you should choose 鈥淪-HI鈥, and choose 鈥淪-HI鈥 when low-speed.) The factory default is for the high-speed mode.
Continue to press the "Mode / Speed" button to enter the second screen-鈥淐ontrol points 聽 聽 聽 聽 聽聽
setting鈥. The LED display 4-digit is for the number of control points. To plus or minus the number by pressing the 鈥渦p鈥 and 鈥渄own鈥 button (Long pressing can adjust quickly). The factory default is for 50.

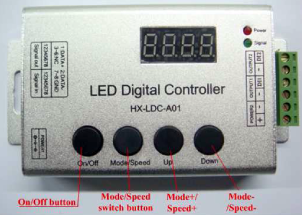

After setting well, press the "On / off" button to save and exit. 聽 聽There are 4 buttons in total on the control panel, function of each button as below
Adopt wireless control method, 4keys in total, function of each key as below:
On/off It can open or close output.
Mode/Speed 聽Mode adjustment / speed adjustment function switch (The first LED displays H for model adjustment, shows S for the speed adjustment.)
UP Mode+/Speed+ button. When in mode regulator function, it is for 鈥淢ode+鈥. When in speed regulator function, it is for 鈥淪peed+鈥.
DOWN Mode-/Speed- button. When in mode regulator function, it is for 鈥淢ode-鈥. When in speed regulator function, it is for 鈥淪peed-鈥.
Adopt wireless control method, 4keys in total, function of each key as below
